The Special Requirements for a Slurry Pump for Mining

1. Differences in Ore Properties

The physical and chemical properties of different non-ferrous metal ores (such as copper, lead, zinc, aluminum, etc.) have a notable influence on the performance of a slurry pump for mining.

These properties, including the hardness, density, and abrasiveness of the ore, determine the operating conditions and wear and tear on the pumps. For example, harder ores may require pumps with stronger materials to withstand the increased wear. Similarly, ores with higher density may necessitate pumps with higher power ratings to ensure efficient transportation. The abrasiveness of the ore is particularly critical, as it can rapidly degrade pump components, demanding the use of abrasion-resistant coatings to prolong pump life.

2. Operating Environmental Conditions

Mining environments present unique challenges to a slurry pump for mining with regard to temperature, humidity, and corrosive media. High temperatures and corrosive media can accelerate pump wear and corrosion, reducing their lifespan. In such environments, the composition of the slurry pump should be capable of resisting high temperatures and corrosion. Additionally, the pump may need to be designed with seals and bearings that can operate reliably in humid conditions to prevent moisture ingress and subsequent damage.

3. Production Efficiency and Energy Consumption

The performance of a slurry pump for mining directly affects the production efficiency and energy consumption. An efficient and durable pump can reduce energy consumption and increase production efficiency, thereby enhancing the economic benefits of the mine. The high-performance pump with optimized impeller designs and advanced bearing systems can minimize energy loss and wear, leading to longer pump life and reduced maintenance costs. Moreover, by selecting a pump that is appropriately sized for the specific mining application, mines can avoid oversizing, which can lead to unnecessary energy waste.

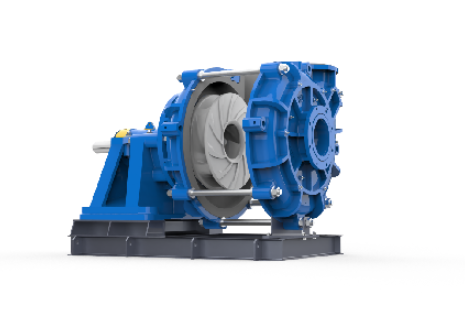

Naipu Ceramic Slurry Pump for Mining

1. Wear Resistance and Corrosion Resistance

The key overflow components (such as impellers, liners, and casings) of our pump are crafted from highly wear-resistant ceramic materials boasting a Mohs hardness of 9. When compared to traditional rubber and metal slurry pumps, its service life increases by 2 to 3 times. This remarkable wear resistance enables the pump to significantly reduce maintenance costs and downtime when transporting highly abrasive slurries, including mineral slurries, tailings, and coal slurries laden with hard particles.

Furthermore, the ceramic material exhibits exceptional chemical stability, effectively withstanding corrosion from acidic or alkaline substances present in the slurry. Even in harsh chemical environments, such as acidic mine wastewater, alkaline industrial slurries, or media containing corrosive chemicals, our Naipu ceramic slurry pump for mining maintains efficient and stable operation.

2. Advanced Design Concepts

Impeller Design: The impeller is the core component of the slurry pump, and its design directly affects the pump's efficiency and head. At Naipu, we optimize the impeller design using advanced fluid dynamics principles, improving the pump's efficiency and head while minimizing energy loss.

Flow Channel Optimization: The internal flow channels of our ceramic slurry pumps are meticulously optimized. The smooth transitions and rational layout of the flow channels make the slurry flow more uniformly within the pump, avoiding local wear and clogging and ensuring efficient and stable pump operation. This design not only improves the pump's reliability but also further extends the equipment's service life and reduces operating costs.

Segmented Design: We utilize a segmented design approach to address the challenge of ceramic materials being difficult to scale up. For example, in the rubber-composite ceramic sleeve solution, small ceramic blocks are used to avoid fragmentation, leading to the derivation of a mosaic bonding solution. The mosaic rubber performing solution involves secondary vulcanization on the overflow surface of the sleeve, enhancing the overall wear resistance of the area and extending the life by approximately 30%-50%.

3. Composite Ceramic Technology

Our innovative rubber-ceramic composite technology combines the structural stability of rubber with the wear resistance of ceramic, overcoming the limitation of traditional ceramic slurry pumps that struggle to exceed a diameter of 350mm. This allows the pump to maintain high wear and corrosion resistance while accommodating larger diameter slurry transportation needs. It can withstand higher operating pressures and more complex operating conditions, thereby broadening its application range. Whether used for high-lift transportation or long-distance pipeline transportation, our Naipu ceramic slurry pump for mining can sustain stable operating performance, ensuring the continuity and reliability of the production process.

Case Sharing

At an iron ore concentrator in Shanxi, China, a 550mm diameter ceramic slurry pump for mining was installed in the grinding feed section, handling a flow rate of up to 2900-3200 cubic meters per hour with a head of 38-42 meters.

The highly abrasive nature of iron ore slurry presents major difficulties for the durability and performance of slurry pumps. In this demanding environment, traditional rubber flow parts from other manufacturers lasted only 90 days before requiring replacement. In contrast, metal flow parts fared even worse, with a service life of just 82 days. These frequent replacements not only increased maintenance costs but also caused unplanned downtime, disrupting production schedules and reducing overall efficiency.

In contrast, the rubber-ceramic composite front liner developed by Naipu demonstrated remarkable performance. It achieved a service life of 168 days—nearly double that of traditional rubber and metal components. Even after this extended period, the liner exhibited only minor surface rubber wear and remained fully operational, highlighting its excellent wear resistance.

Conclusion

As a leading innovator in China's slurry pump industry, our rubber-ceramic composite technology has broken through the limitations of traditional pumps, meeting diverse needs. If you are looking for the best pump for slurry that can significantly enhance production efficiency, reduce operational costs, and offer superior wear and corrosion resistance, our Naipu ceramic slurry pump for mining is the ideal choice. We invite you to contact us to learn more about our products and to tailor the best solution for your mining project.
