Product Introduction

1, Overview

Hydrocyclones is a common separating and classifying device, which are widely used in minerals processing flows with closed-circuit grinding classification and open-circuit classification for nonferrous metals and ferrous metals recovery, to improve metal recovery rate, increase throughput capacity, and improve economic benefit for the Miner. They are preferred especially in fine particle classification, and can also be used for desliming, desanding and thickening operations. With the development of ore dressing technology, demands on hydrocyclone go to two extremes: large diameter (high capacity) or small diameter (fine particle classification)

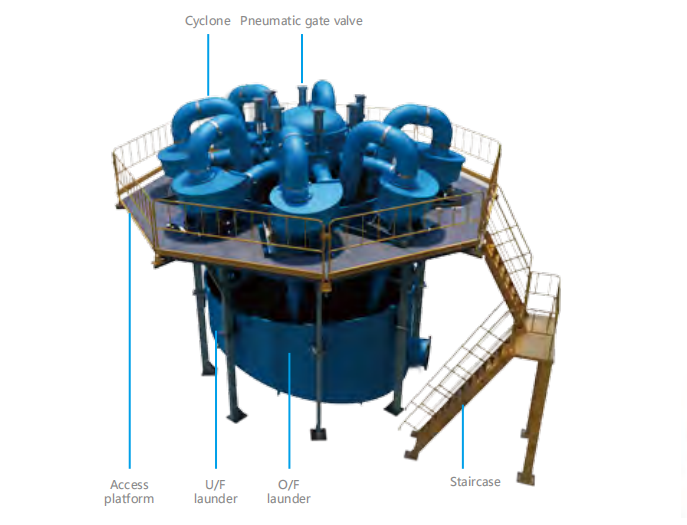

Naipu has been committed to the R&D of new technology and equipment for high efficiency and low consumption swirl separation, our hydrocyclone has widely used in different mines, We can provide individual hydrocyclones, as well as entire multi-unit hydrocyclone clusters that can be supplied with valves, piping, collectors, support structures, instrumentation, and other accessories.  Our experienced engineers work with you to address your specific process challenges, and ensure the correct equipment selection

2, Features

2.1 Less resistance at the feeding, reduce the wearing and energy consumption

2.2 Longer service life of wear parts

2.3  Effectively improve the capacity of single set equipment

2.4 Finer separation size.

2.5 Reduce the short-circuit, improve the classification efficiency

2.6 Design and model selection available

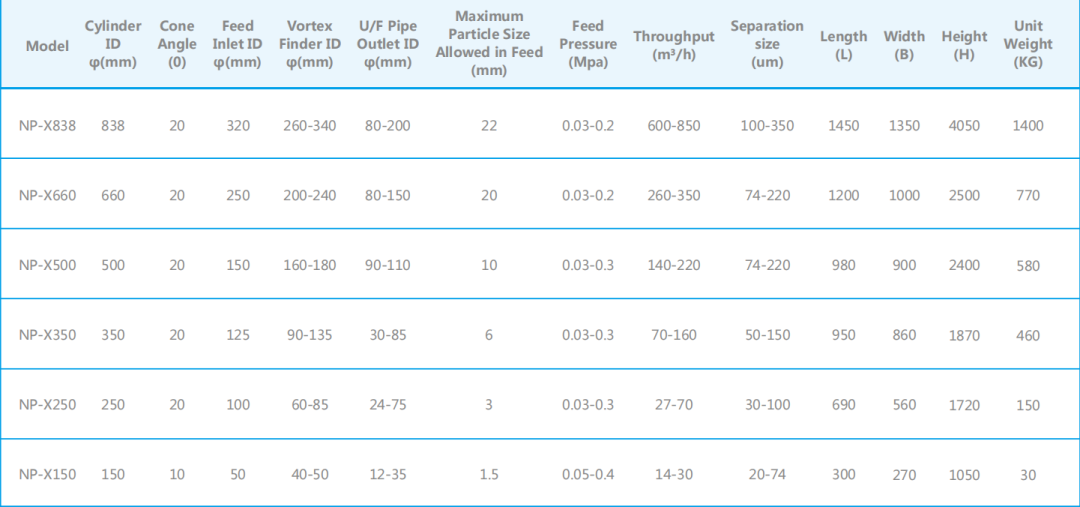

3、MODELS

4, Applications

Naipu NPX series hydrocyclones are applied in ferrous and non-ferrous mine grinding classification working ,concentration working and etc.

Pictures

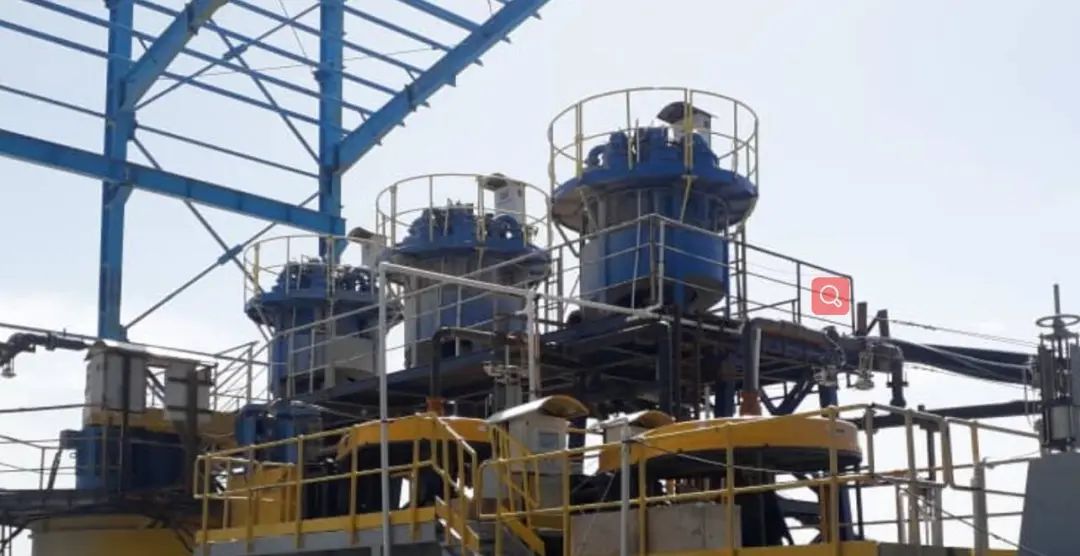

NPX 838-7 hydrocyclone in Mongolia copper mine

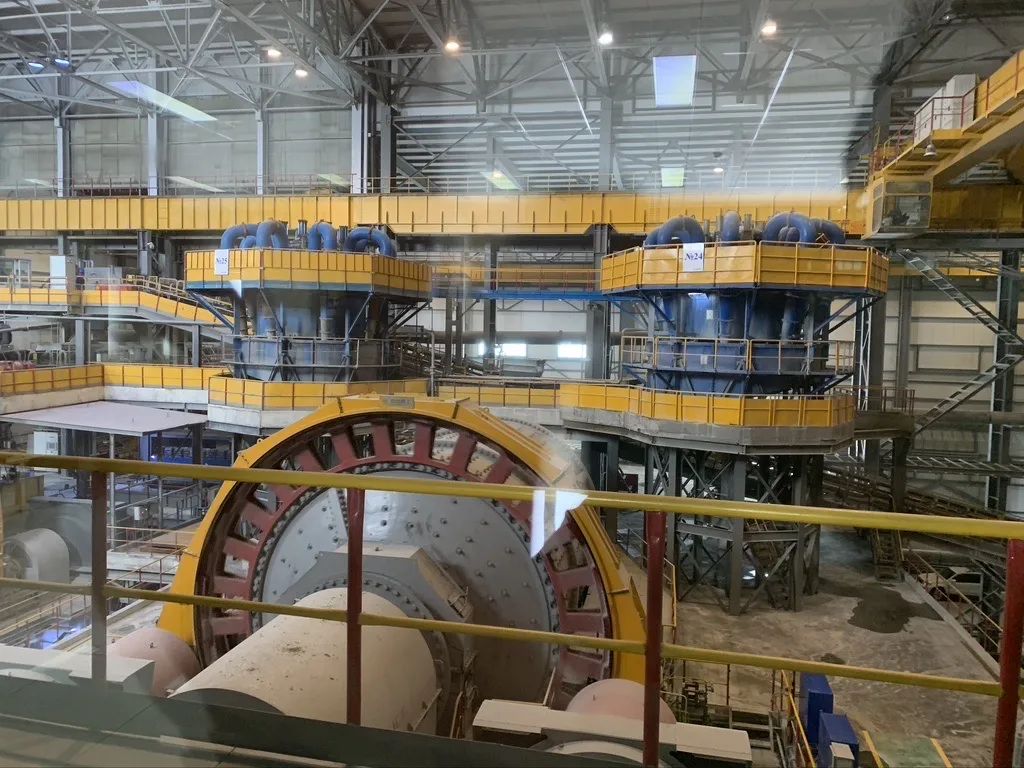

NPX250-7 cyclone in Iran copper mine
